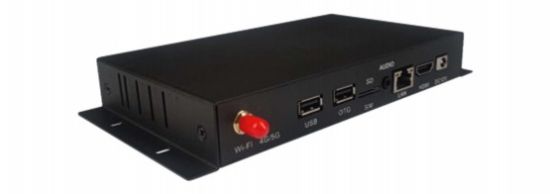

SCD-MB4KP
RK3566 4K Android Media Player Box · Digital Signage Player
Android 11
4K / H.265 Decode
Quad-Core RK3566
4G / 5G Optional
CMS Ready
24/7 Operation
CPU
RK3566, quad-core Cortex-A55, up to 1.8 GHz
Storage
eMMC 16 GB (32 GB optional) + TF card expansion (SSD-capable)
Decoding
4K / H.265 hardware decoding · 1080P video decoding
Output
HDMI output to any HDMI display
Cellular
4G / 5G module optional, via SIM card slot
Dimensions
202.6 × 106.5 × 27.8 mm (boxed)
SKU:
SCD-MB4KP
Free shipping
No price shown online — our GCC team will quote based on quantity, mounting and install.
Overview
More about SCD-MB4KP
Why SCD-MB4KP
1
High performance
Quad-core RK3566 (ARM Cortex-A55) at up to 1.8 GHz with Mali-G52 GPU — a qualitative leap over common single/dual-core boxes, handling high-definition video and complex interactive operations with ease.
2
High stability
Purpose-built hardware and software integration keeps the board rock-solid, so the player runs unattended for 7×24 continuous operation in demanding signage deployments.
3
High integration
Ethernet, Wi-Fi, power amplifier, TF expansion, USB and HDMI are all built in — a single compact box that greatly simplifies installation versus a full all-in-one unit.
4
High definition
HDMI output drives LCD displays, TVs, projectors and LED stitching screens of practically any size or resolution, with 4K/H.265 hardware decoding for crisp, smooth playback.
Specifications
Products specifications
System
CPU
RK3566, quad-core Cortex-A55, up to 1.8 GHz
GPU
Mali-G52, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
OS
Android 11.0 (Android 7–12 available on request)
Storage
eMMC 16 GB (32 GB optional) + TF card expansion (SSD-capable)
Software
Open root permissions, customizable product development
Upgrade
OTA remote upgrade · U-disk upgrade
Management
Server / standalone mode switch · CMS compatible
Video & Display Output
Decoding
4K / H.265 hardware decoding · 1080P video decoding
Output
HDMI output to any HDMI display
Compatible with
TVs, monitors, projectors, LED stitching / video walls
Image rotation
Manual 0° / 90° / 180° / 270°
Play mode
Standalone or networked content distribution
Network
Wi-Fi
Built-in Wi-Fi module, external antenna
LAN
RJ45 Ethernet port
Cellular
4G / 5G module optional, via SIM card slot
Remote mgmt
Internet / LAN cluster management, CMS server or cloud
Media Playback
Audio
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP, etc.
JPG, BMP, PNG and other common formats
Language
Multi-language UI support
Audio out
Standard left & right channel line output
Interface
USB
1× USB 2.0 HOST, 1× USB 2.0 / OTG switchable
TF card
TF card slot for content / storage expansion
SIM slot
For optional 4G/5G cellular module
Audio
3.5 mm dual-channel audio output
HDMI / Power
HDMI out · DC 12V power input
Other
IR receiver · recovery button · reset (in audio port)
Build & Environment
Housing
Compact metal enclosure, wall / VESA mountable
Working temp.
−20°C to +60°C
Storage humidity
10% – 90% RH
Operation
Rated for continuous 7×24 operation
Product Measurements
Dimensions
202.6 × 106.5 × 27.8 mm (boxed)
Mount holes
188 × 73.95 mm (M3 screw, 4-point)
Power
DC 12V input, board-level power only
In the box
Media player box, DC power adapter, Wi-Fi antenna, mounting bracket
